Description

• Extra large load drum —
22+ pound capacity
• 15,000+ cycle machine life
design (tested at full load)
• Superb cleanability with
4 field adjustable wash
programs
• Top quality SKF bearings in a
heavy duty cast iron housing
• 3 seals with 5 lips protect
bearings
• Pump drain standard
• ADA compliant
• 300 G-force for greatest
spin moisture reduction
and faster dry time
• Superior over-suds and
unbalance tolerance
• AC motor (no brushes)
• Front access for easy
serviceability
• Professional 8-point
suspension
• Solid steel counterweights —
no concrete
• Quiet operation
• Saves up to 60% on water
vs. top load washers
• Soft mount design for easy
installation
• ENERGY STAR® Certified

Specifications

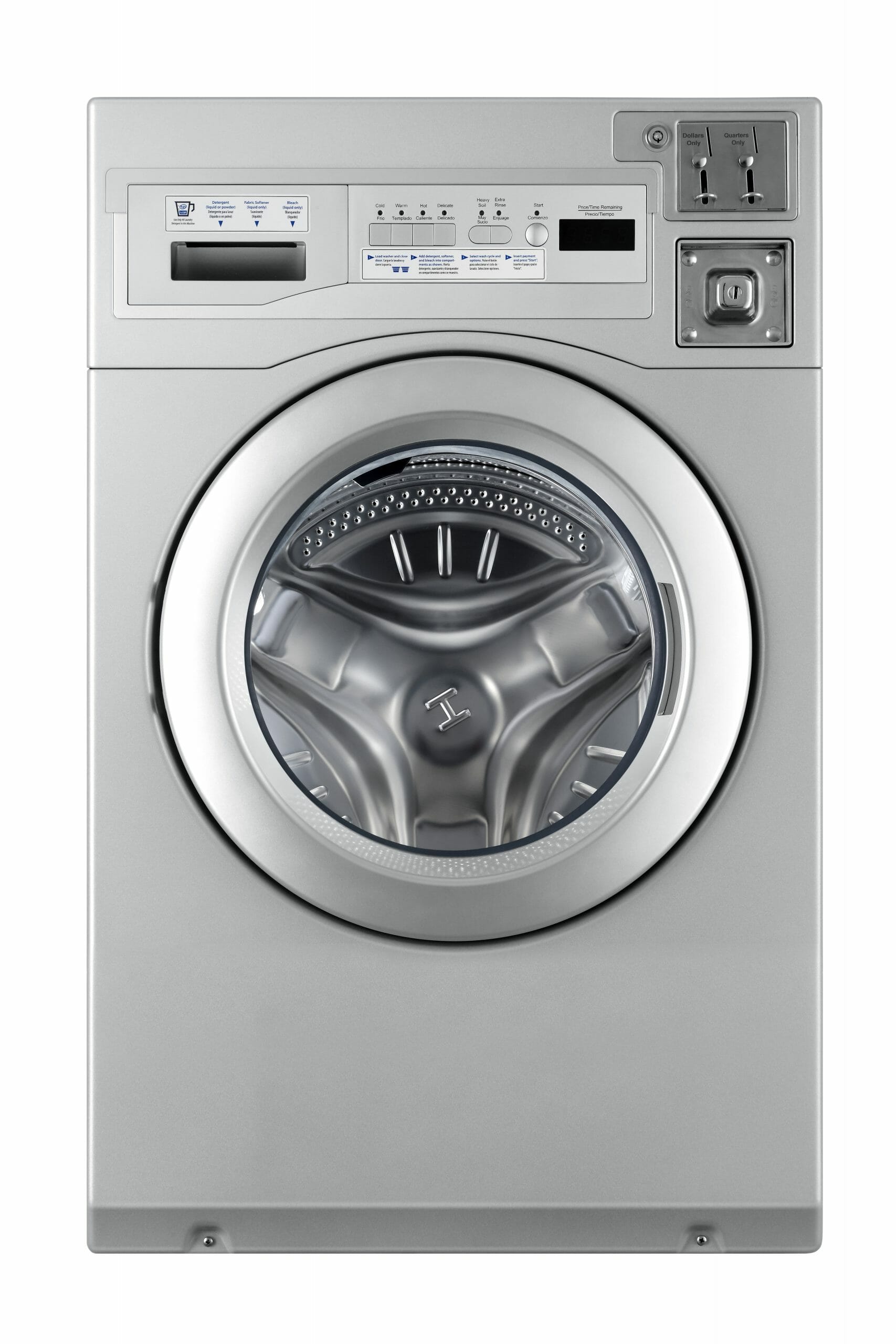

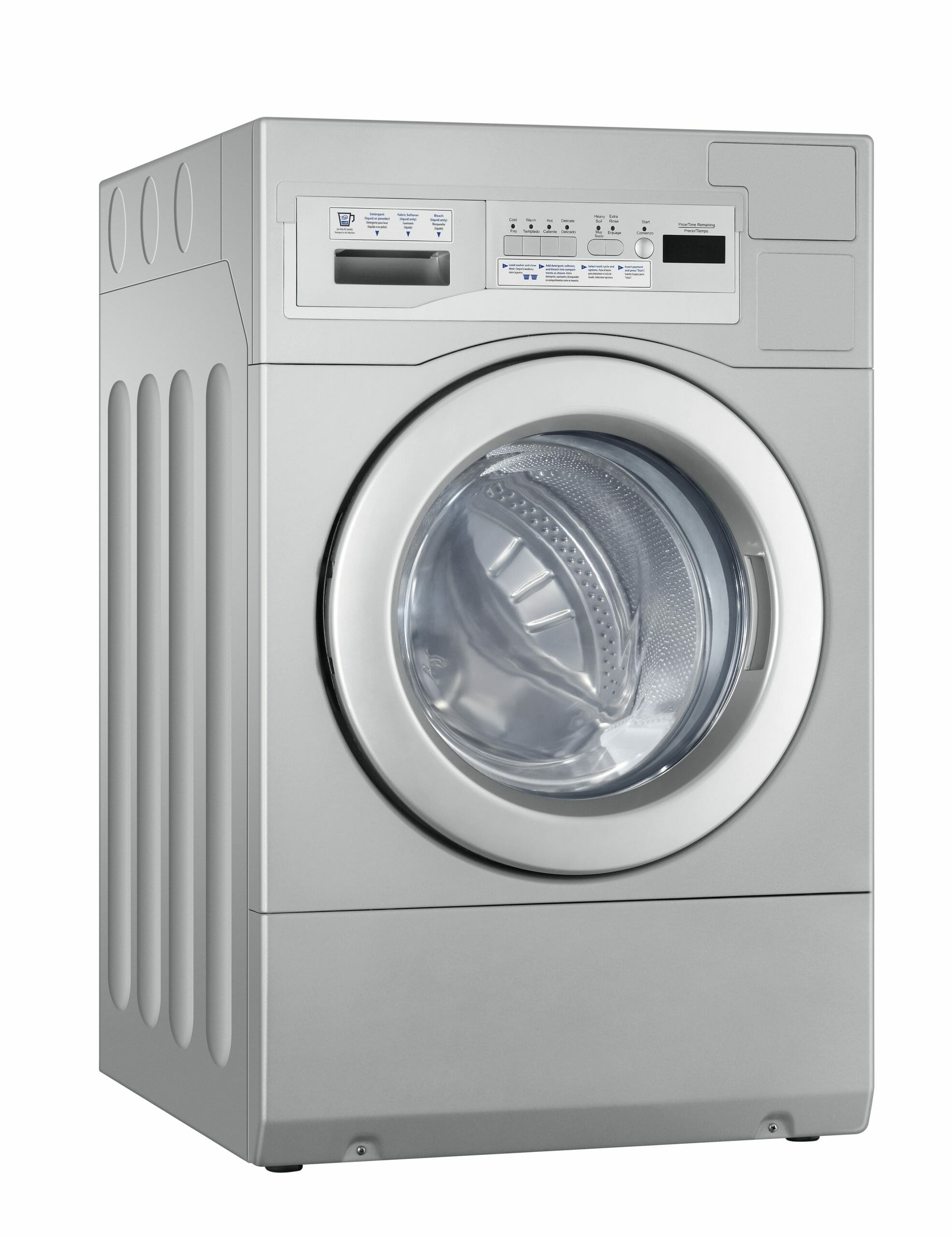

Encore by Wascomat Washer Specifications
Motor
Variable-speed, reversible,
thermoprotected, high-eciency,
controlled induction
Electrical Rating 120 V/60 Hz/1-phase
Breaker Requirements 15A
Cylinder Volume
Cylinder Diameter 21 5/8 in (550 mm)
Cylinder Depth 18 1/4 in (464 mm)
Wash Capacity 22 lbs (10 kg)
Door Opening 15 in (380 mm)
Wash Speed 45 RPM
Maximum RPM* 1,050 RPM
Maximum G-force* 300 G
Inlet Hose 2 3/8 in (hoses included)
Water Pressure 10-90 psi (70-600 kPa)
Drain Hose 1 in (25.4 mm)
Crated Weight 314 lbs (142 kg)
Uncrated Weight 299 lbs (136 kg)
Product Dimensions
A. Overall Height 43 1/4 in (1098 mm)
B. Height to Center of Door 23 in (584 mm)
C. Height to Bottom of Door 12 3/16 in (310 mm)
D. Overall Width 27 in (686 mm)
E. Overall Depth 30 1/8 in (765 mm)

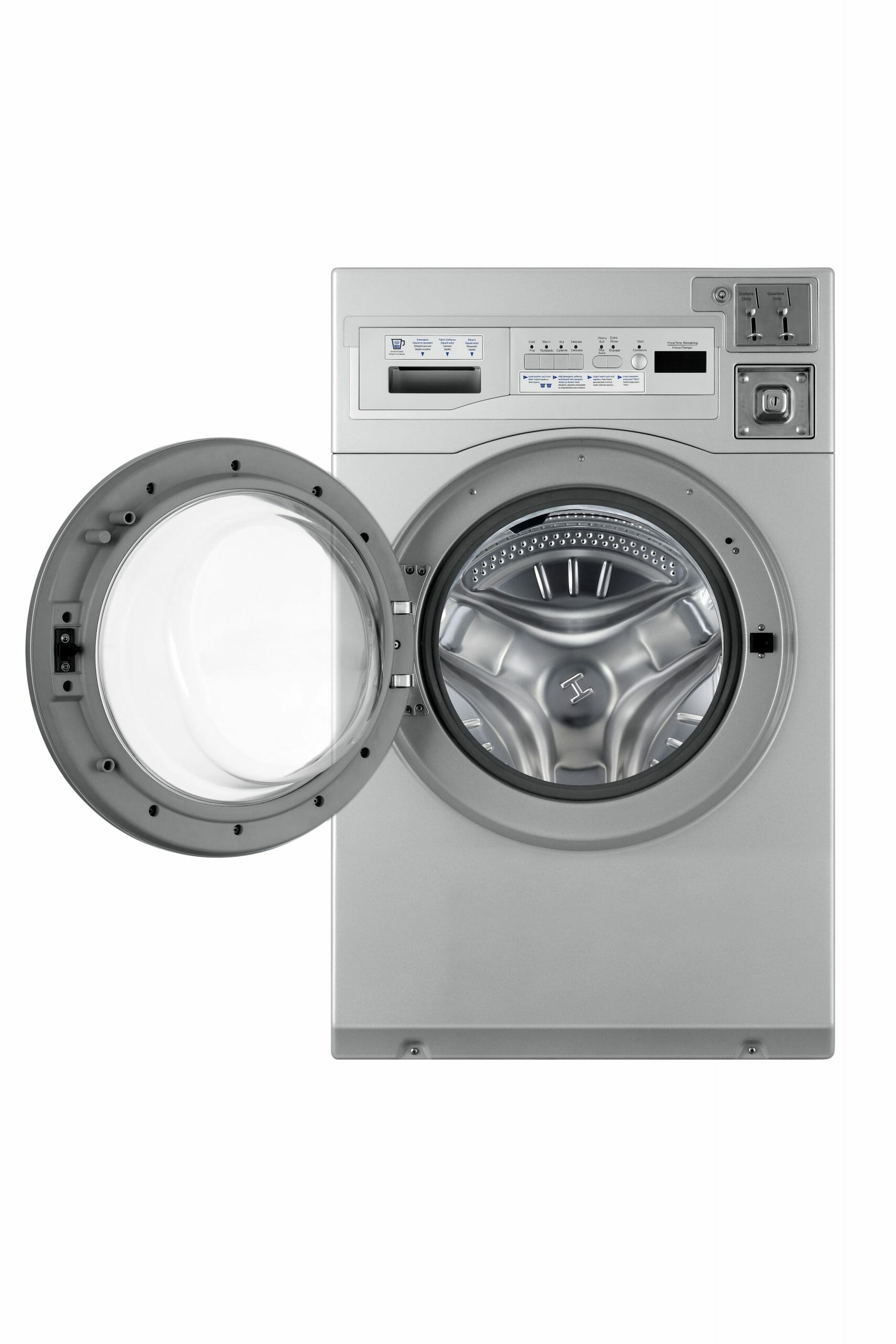

E. Depth w/ Door Open 90 º 51 3/16 in (1300 mm)
